Solar PV Combiner Box Explained for Modern PV Systems
Table of Contents
Have you ever looked at a large solar array and wondered how dozens of panel strings are safely managed before power reaches the inverter? That’s where the solar pv combiner box quietly does its job. Although it rarely gets the spotlight, this component plays a critical role in system safety, performance, and long-term reliability.
In this article, we’ll walk through what a solar PV combiner box is, how it works, the different types available, and how you can choose the right one for your project—whether you’re planning a commercial rooftop system or a utility-scale solar plant.
What Is a Solar PV Combiner Box and Why It Matters

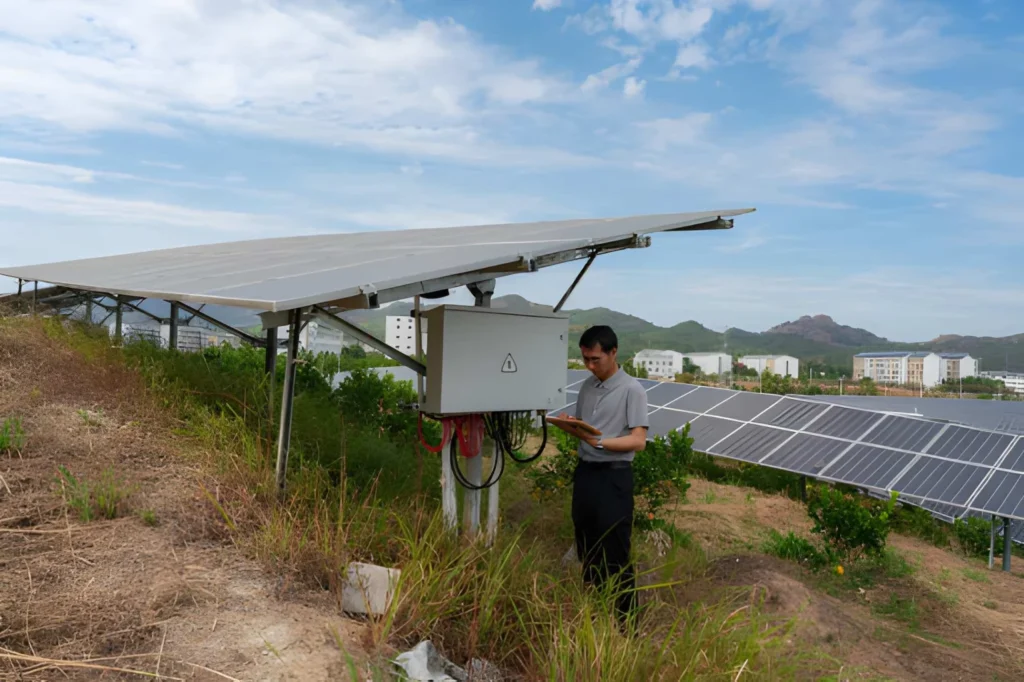

A solar PV combiner box is an electrical enclosure that brings together multiple DC input strings from solar panels into a single DC output. That consolidated output then feeds into an inverter or DC distribution cabinet.
Instead of running dozens of individual cables all the way to the inverter, you centralize them. This simplifies wiring, reduces material costs, and improves system organization.
More importantly, a solar PV combiner box integrates protection and monitoring functions that help prevent failures and downtime. Without it, even a minor fault in one string could compromise the entire PV system.
In short, it helps you:
- Improve electrical safety
- Reduce cable losses and clutter
- Simplify maintenance and troubleshooting
- Enhance system scalability
| Key Function | Why It’s Important |
|---|---|
| String combining | Reduces inverter input complexity |
| Circuit protection | Prevents damage from faults |
| Monitoring | Enables faster fault detection |
| Isolation | Improves maintenance safety |
Core Components Inside a Solar PV Combiner Box
If you open a solar PV combiner box, you won’t find anything mysterious—but every component has a clear purpose. Together, they create a controlled and protected environment for DC power aggregation.
Main Internal Components
Most designs include:
- DC fuses or breakers for each string
- DC surge protection devices (SPD)
- DC disconnect switch
- Busbars for current aggregation
- Optional monitoring modules
Each of these components contributes to system stability. For example, fuses isolate faulty strings, while surge protection shields equipment from lightning-induced overvoltage.
| Component | Function |
|---|---|
| DC fuse | Protects individual PV strings |
| SPD | Limits transient overvoltage |
| Disconnect switch | Allows safe shutdown |
| Monitoring unit | Tracks current and voltage |
Types of Solar PV Combiner Boxes by Application
Not all solar projects are the same, and neither are combiner boxes. The right type depends on voltage level, system size, and operational environment.
Standard DC Combiner Boxes
These are widely used in commercial and industrial PV systems. They focus on basic string combining and protection, with limited intelligence.
Smart Solar PV Combiner Boxes
Smart versions integrate real-time monitoring. You can track string current, voltage, and sometimes temperature. This data helps identify underperforming strings early.
High-Voltage Combiner Boxes
Designed for 1000V or 1500V DC systems, these are common in utility-scale solar plants. Higher voltage means lower current and reduced transmission losses.
| Type | Best For | Key Advantage |
|---|---|---|
| Standard | Small–medium systems | Cost-effective |
| Smart | Large C&I projects | Better diagnostics |
| High-voltage | Utility-scale plants | Higher efficiency |
Where Solar PV Combiner Boxes Are Commonly Used
You’ll find a solar PV combiner box anywhere multiple PV strings need to be managed safely and efficiently.
Typical applications include:
- Commercial rooftop installations
- Industrial facilities with large PV arrays
- Ground-mounted solar farms
- Agricultural solar projects
- Energy storage-integrated PV systems
In industrial use cases, reliability and uptime matter more than anything. A well-designed combiner box helps ensure that one faulty string doesn’t shut down megawatts of generation.
Key Specifications You Should Evaluate
Choosing a solar PV combiner box isn’t just about enclosure size. Technical specifications directly impact safety and compliance.
Electrical Ratings to Check
Pay close attention to:
- Maximum DC voltage (1000V or 1500V)
- Number of input strings
- Maximum output current
- Fuse ratings per string
Environmental and Mechanical Factors
Outdoor installations demand robust protection:
- IP65 or higher enclosure rating
- UV-resistant materials
- Corrosion-resistant coatings
| Specification | Why It Matters |
|---|---|
| DC voltage rating | Prevents insulation failure |
| IP rating | Protects against dust and water |
| Temperature range | Ensures stable operation |
| Compliance standards | Meets regulatory requirements |
Smart Features and Monitoring Capabilities
Modern PV systems rely on data. That’s why many projects now specify a smart solar PV combiner box instead of a passive one.
Smart features may include:
- String-level current monitoring
- DC voltage measurement
- Communication via RS485 or Ethernet
- Integration with SCADA or EMS platforms
With this visibility, you can spot shading issues, connector failures, or degradation before they become serious problems. It’s like having a health monitor for your solar array.
Installation and Maintenance Considerations
Even the best solar PV combiner box won’t perform well if it’s poorly installed. Location, cable routing, and grounding all matter.
Installation Tips
- Mount close to the PV strings to reduce cable losses
- Ensure proper grounding and bonding
- Leave enough clearance for maintenance
Maintenance Best Practices
- Periodically inspect fuses and terminals
- Check SPD status indicators
- Review monitoring data for anomalies
| Aspect | Best Practice |
|---|---|
| Location | Shaded, ventilated area |
| Cabling | Short, clearly labeled |
| Inspection | Scheduled visual checks |
How to Choose the Right Solar PV Combiner Box
So, how do you decide? Start with your system requirements, then narrow down features.
Ask yourself:
- How many strings do you need to combine?
- Is monitoring critical for your operation?
- What voltage standard does your system use?
If you’re planning a large or mission-critical installation, it’s worth discussing your design with experienced engineers. A quick consultation can prevent costly redesigns later. If you’d like, you can always reach out to us for technical guidance or a tailored solution—no pressure, just expertise.
Final Thoughts
A solar PV combiner box may not be the most visible part of your system, but it’s one of the most important. It brings order, safety, and intelligence to complex PV arrays while supporting long-term reliability. By understanding its components, types, specifications, and smart features, you’re far better equipped to make informed decisions.
Whether you’re optimizing an existing installation or designing a new one, choosing the right solar PV combiner box adds real value—not just in performance, but in peace of mind.
