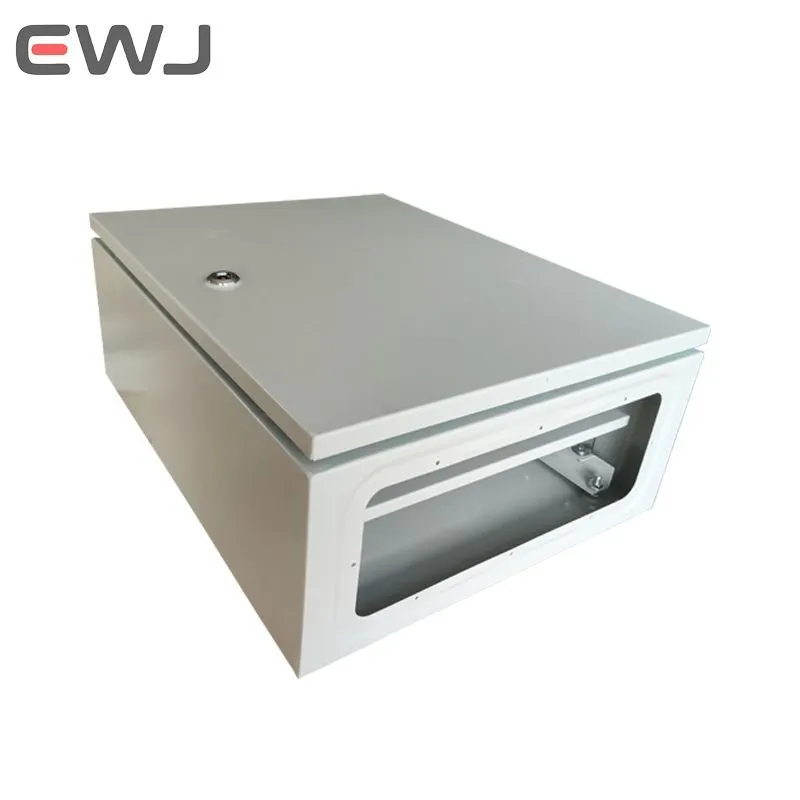

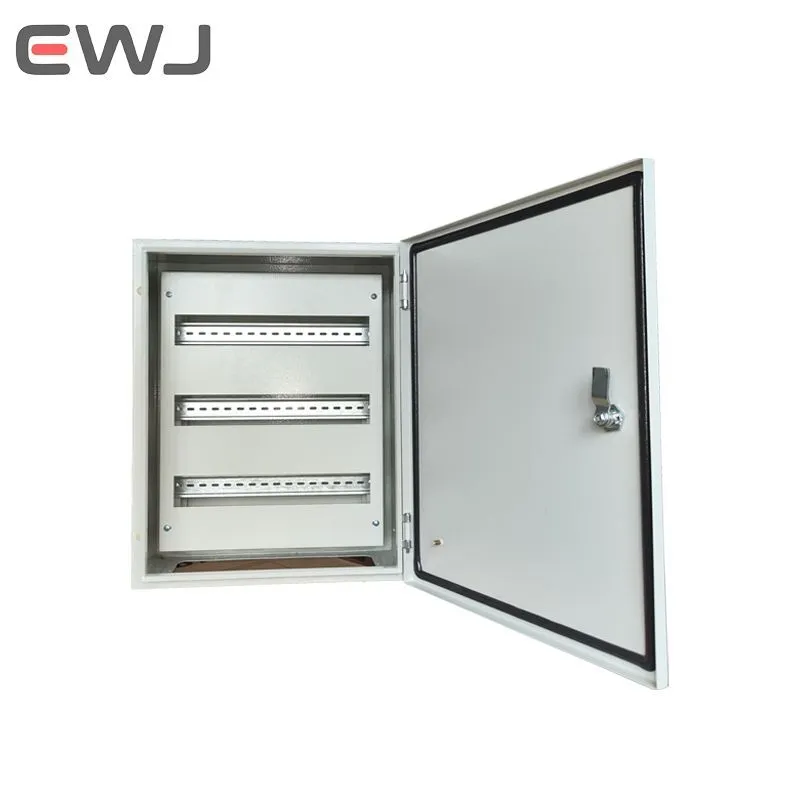

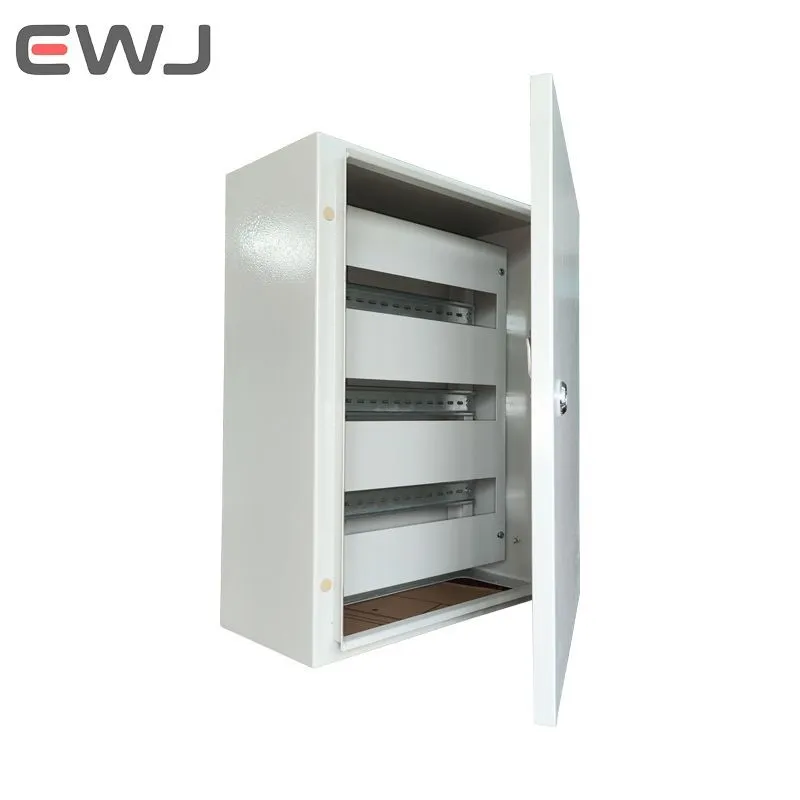

EWJ Metal Enclosures with Integrated Rail System are precision-engineered protective housings designed for the efficient mounting and organization of electrical and electronic components. These durable metal enclosures feature an integrated DIN rail system, making them ideal for rapid installation of circuit breakers, relays, terminal blocks, PLCs, and other control devices.
Constructed from high-quality cold-rolled steel, galvanized steel, or aluminum alloy, the enclosures offer excellent mechanical strength, corrosion resistance, and heat dissipation. The pre-installed DIN rails allow for a cleaner internal layout, enhanced cable management, and reduced assembly time, especially for industrial control panels and automation systems.
Ideal for indoor and outdoor applications, these enclosures are available in IP65/IP66 protection grades, with various mounting options such as wall-mount, pole-mount, and floor-standing. Surface finishes can be customized with powder coating, anodizing, or other treatments to suit different operational environments.
Key Features

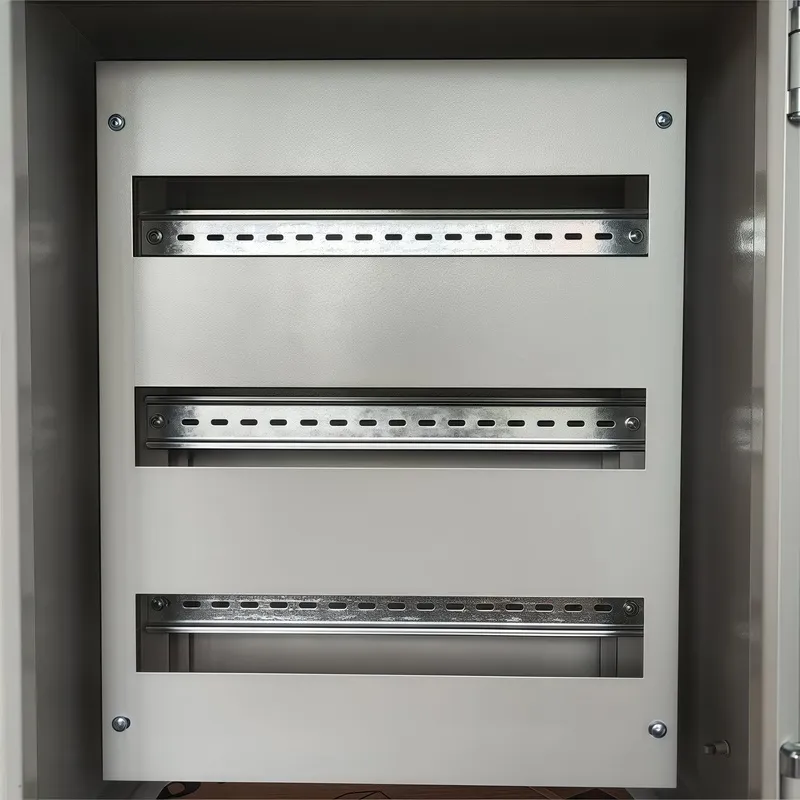

Integrated DIN Rail System
Factory-installed DIN rails for rapid mounting of electrical components and reduced labor cost.Durable Metal Construction
Made from cold-rolled steel or aluminum with robust welds and powder-coated finishes.IP-Rated Protection
IP65/IP66 ingress protection for dustproof and waterproof performance.Flexible Customization
Support for various sizes, rail positions, cable entry options, and surface treatments.Secure & Accessible
Lockable doors, removable panels, and optional transparent windows for easy monitoring and protection.Efficient Heat Management
Designed with ventilation slots or optional fans for thermal control.
Technical Specifications
| Name | Metal box |
| Protection grade | IP65 |
| Surface Treatment | Powder technology |
| Brand | Guozhen |
| Model | EWJ |
| External dimensions | Custom Size |
| Material | Iron/Stainless steel |
| Package | Carton |
Product Size
| Model | H(mm) | W(mm) | D(mm) |
| ME202015 | 200 | 200 | 150 |
| ME252015 | 250 | 200 | 150 |
| ME302015 | 300 | 200 | 150 |
| ME302515 | 300 | 250 | 150 |
| ME303015 | 300 | 300 | 150 |
| ME303020 | 300 | 300 | 200 |
| ME403020 | 400 | 300 | 200 |
| ME404020 | 400 | 400 | 200 |
| ME504020 | 500 | 400 | 200 |
| ME504025 | 500 | 400 | 250 |
| ME505020 | 500 | 500 | 200 |
| ME604020 | 600 | 400 | 200 |
| ME605020 | 600 | 500 | 200 |
| ME606020 | 600 | 600 | 200 |
| ME705020 | 700 | 500 | 200 |
| ME705025 | 700 | 500 | 250 |
| ME705030 | 700 | 500 | 300 |
| ME706025 | 700 | 600 | 250 |
| ME806020 | 800 | 600 | 200 |
| ME806025 | 800 | 600 | 250 |
| ME808020 | 800 | 800 | 200 |
| ME808025 | 800 | 800 | 250 |
| ME1006025 | 1000 | 600 | 250 |
| ME1006030 | 1000 | 600 | 300 |
| ME1008025 | 1000 | 800 | 250 |
| ME1008030 | 1000 | 800 | 300 |
| ME1208025 | 1200 | 800 | 250 |
| ME1208030 | 1200 | 800 | 300 |
| ME12010030 | 1200 | 1000 | 300 |
