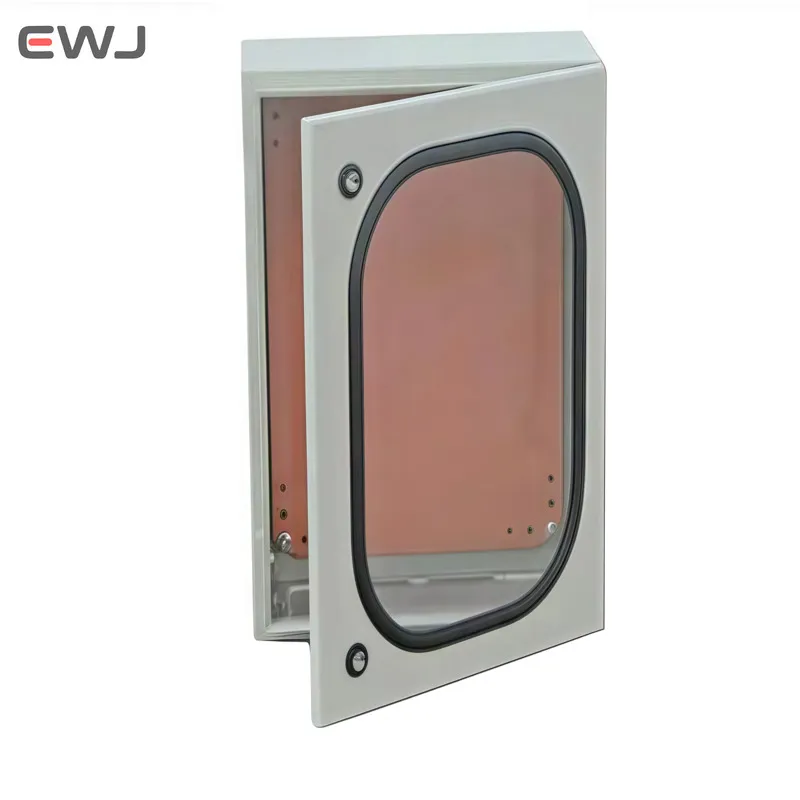

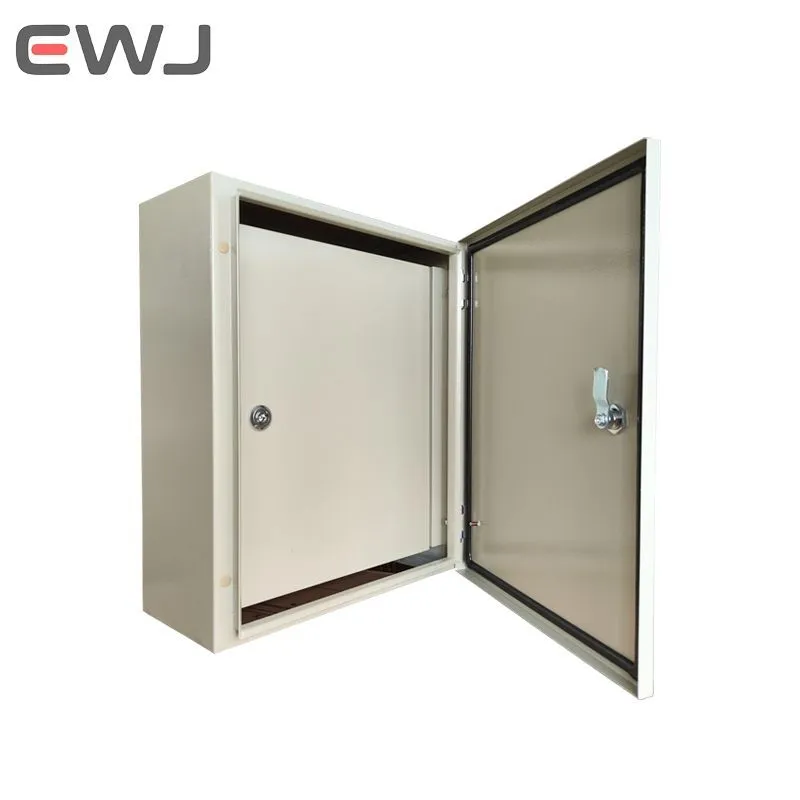

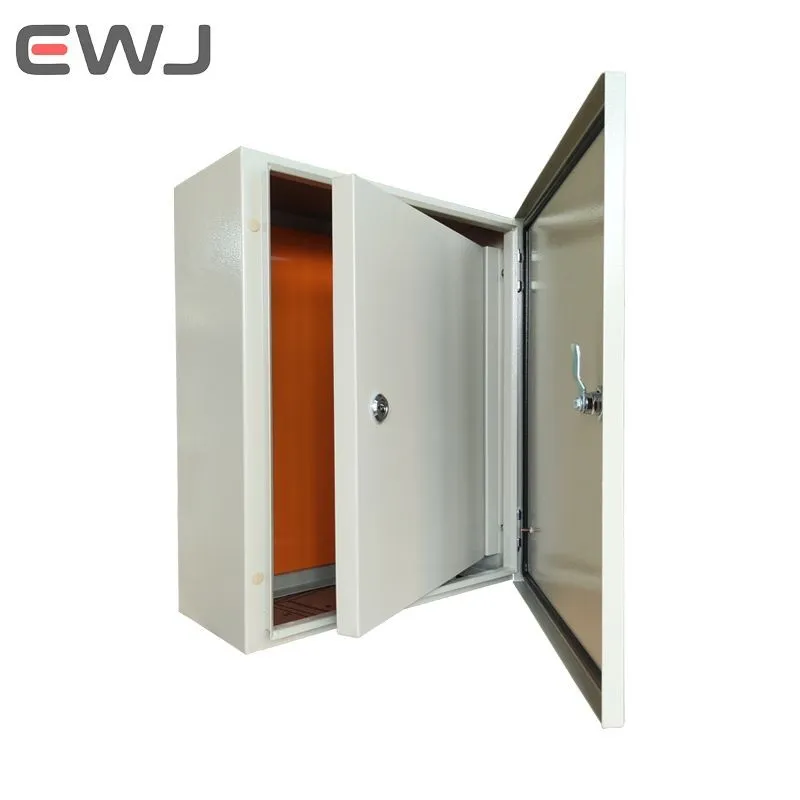

EWJ Customized Double Door Metal Enclosure is a heavy-duty, weather-resistant cabinet designed to house and protect electrical, electronic, and industrial control equipment. Constructed from high-quality cold-rolled steel, galvanized steel, or aluminum alloy, the enclosure offers excellent corrosion resistance and mechanical strength for both indoor and outdoor environments.
The double-door design allows for wide front access, enabling easier wiring, inspection, and maintenance. Doors can be equipped with secure locking systems and optional gasket seals for IP65/IP66 protection. Customization includes dimensions, mounting type, cutouts, ventilation, internal rail systems, and surface finish, making it ideal for control panels, power distribution units, telecom systems, and industrial machinery integration.
This enclosure meets international standards for safety and reliability, including CE and RoHS compliance.
Technical Specifications
| Name | Metal box |
| Protection grade | IP65 |
| Surface Treatment | Powder technology |
| Brand | Guozhen |
| Model | EWJ |
| External dimensions | Custom Size |
| Material | Iron/Stainless steel |
| Package | Carton |
Product Size
| Model | H(mm) | W(mm) | D(mm) |
| ME202015 | 200 | 200 | 150 |
| ME252015 | 250 | 200 | 150 |
| ME302015 | 300 | 200 | 150 |
| ME302515 | 300 | 250 | 150 |
| ME303015 | 300 | 300 | 150 |
| ME303020 | 300 | 300 | 200 |
| ME403020 | 400 | 300 | 200 |
| ME404020 | 400 | 400 | 200 |
| ME504020 | 500 | 400 | 200 |
| ME504025 | 500 | 400 | 250 |
| ME505020 | 500 | 500 | 200 |
| ME604020 | 600 | 400 | 200 |
| ME605020 | 600 | 500 | 200 |
| ME606020 | 600 | 600 | 200 |
| ME705020 | 700 | 500 | 200 |
| ME705025 | 700 | 500 | 250 |
| ME705030 | 700 | 500 | 300 |
| ME706025 | 700 | 600 | 250 |
| ME806020 | 800 | 600 | 200 |
| ME806025 | 800 | 600 | 250 |
| ME808020 | 800 | 800 | 200 |
| ME808025 | 800 | 800 | 250 |
| ME1006025 | 1000 | 600 | 250 |
| ME1006030 | 1000 | 600 | 300 |
| ME1008025 | 1000 | 800 | 250 |
| ME1008030 | 1000 | 800 | 300 |
| ME1208025 | 1200 | 800 | 250 |
| ME1208030 | 1200 | 800 | 300 |
| ME12010030 | 1200 | 1000 | 300 |
